SC & SCP BEARINGS FOR CONTINUOUS CASRING MACHINES

This kind of bearing originated from the bearing brand in Japan. It is a special bearing for a continuous casting machine. The bearings used in continuous casting machines are specially designed by FV, with a full complement cylindrical roller bearing to maximize static load ratings.
APPLICATION: CCM rolls

GET A QUOTE

This kind of bearing originated from the bearing brand in Japan. It is a special bearing for a continuous casting machine.

rolling mill bearings, Roll neck bearings, Tapered roller bearings, Spherical roller bearings

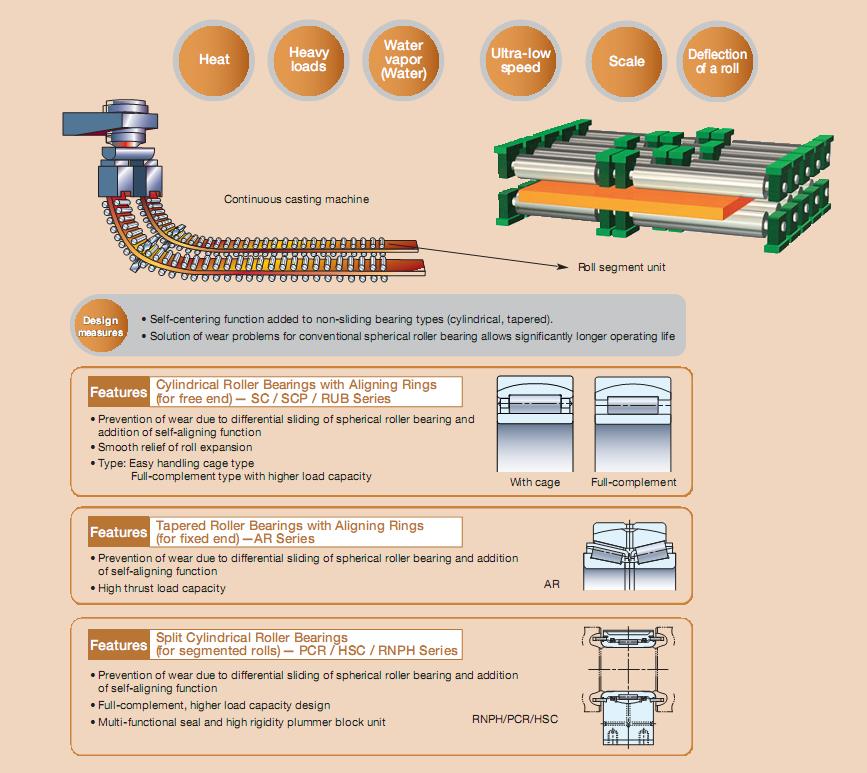

For continuous casting machines, roll support bearings are utilized to handle heavy loads and extremely low speeds. These machines operate under severe conditions, resulting in exposure to splashing water and scales.

SCP bearings are used for the fixed side, while SC bearings are used for the free side of the end of rolls, for the intermediate support section of beetle-shaped rolls, such as driving rolls, HSC bearing units with half-round outer rings are used.

FV bearings used in continuous casting machines are designed with maximized static load ratings in mind and based on a full complement cylindrical roller bearing. The rollers of these bearings have a crowning setup on their rolling surface, which varies according to the size of the loads. It helps to eliminate stress concentration issues at specific locations. Moreover, the bearings are equipped with a self-aligning mechanism to counteract roll bending and misalignment resulting from heavy loads.

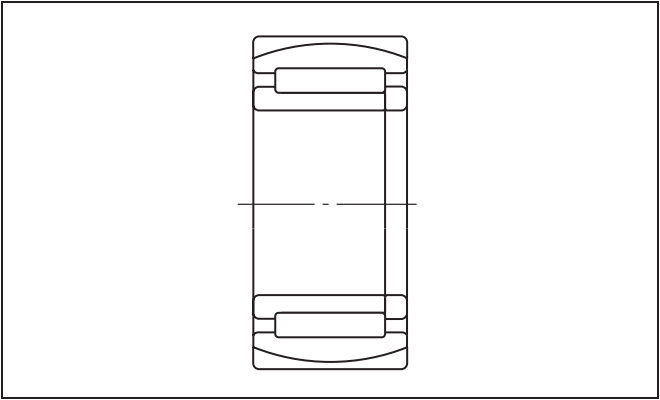

SC bearings (free side)

rolling mill bearings, Roll neck bearings, Tapered roller bearings, Spherical roller bearings

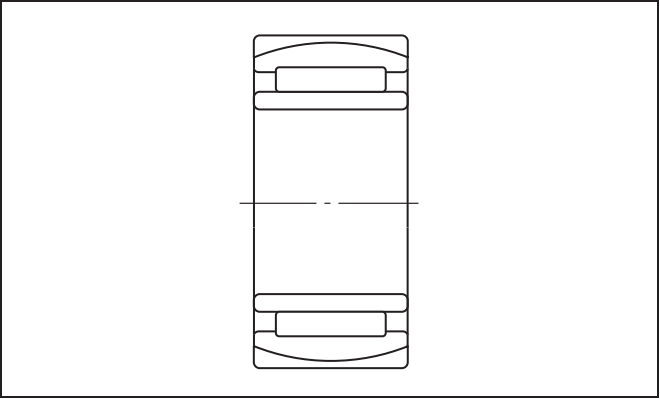

SCP bearings (fixed side)

rolling mill bearings, Roll neck bearings, Tapered roller bearings, Spherical roller bearings

To accommodate thermal expansion and contraction, the bearing's inner ring is designed to move freely in the axial direction.

A new type of bearing has been developed to improve the short service life of spherical roller bearings, which are commonly used in continuous casting machines. The bearing features inner and outer rings with ribs, as well as loose ribs, which allow it to accommodate axial loads generated by the thermal expansion and contraction of rolls.

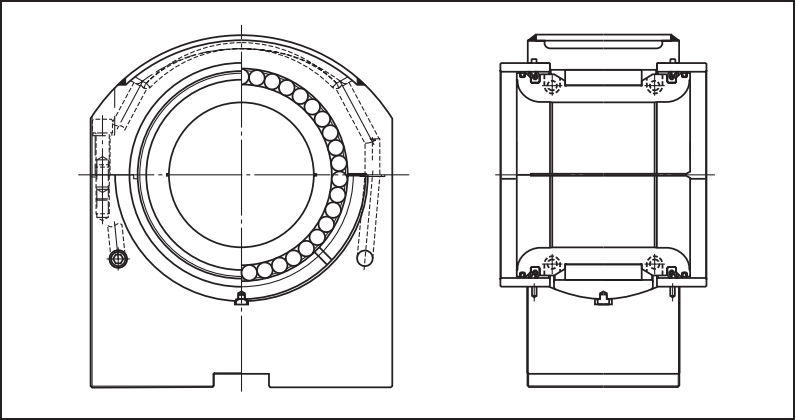

HSC bearing units with half-round outer ring

rolling mill bearings, Roll neck bearings, Tapered roller bearings, Spherical roller bearings

The bearing in question is designed to move smoothly in the axial direction, allowing for thermal contraction and expansion of the roll. Its structure is unique, featuring a half-round outer ring placed only on the loaded side. This design, along with the compact seal, provides a 15% increase in static load rating compared to conventional products. Additionally, the jacket design regulates the water flow, resulting in high cooling efficiency equivalent to that of conventional products that require a lower water flow rate of 55%.

SC & SCP series bearings for continuous casting machines

(Cylindrical roller bearings with Aligning ring - Special bearings for CCM)

Bearing No.	Boundary dimensions(mm)				Acceptable roll	Basicloadratings		Mass	Design	Corresponding Spherical Roller bearing
	Boundary dimensions(mm)				heat expansion	(kN)		Mass		Bearing No.
	d	D	B	rmin.	(mm)	C	Cor	(kg)		Bearing No.
SC101140VA	50	110	40	2	±4.5	164	254	2.1	1	22310CC
SC119032VA	55	90	32	1.1	±3.5	89.9	202	0.9	1	—
SC111025VA	55	100	25	1.5	±4	95.9	143	0.9	1	22211CC
SC131231V-1A	65	120	31	1.5	±4	118	206	1.7	1	22213CC
SC131448VA	65	140	48	2.1	±5.5	238	393	4	1	22313CC
SC141331VA	70	125	31	1.5	±6	126	213	1.8	1	22214CC
SC141551VA	70	150	51	2.1	±7.5	273	406	4.7	1	22314CC
SC151331VA	75	130	31	1.5	±5	148	237	1.9	1	22215CC
SC171565VA	85	150	65	3	±8	280	621	5.4	1	24217CC
SCP171565VA	85	150	65	3	—	280	621	5.5	2	24217CC
SC181640-1VA	90	160	40	2	±4.5	240	427	3.8	1	22218CC
SCP181640V-1A	90	160	40	2	—	194	400	3.9	2	22218CC
SC181652VA	90	160	52.4	2	±5.5	309	555	4.9	1	23218CC
SCP181652V-2A	90	160	52.4	1.1	—	271	566	5.1	2	23218CC
SC181645/48V-1A	90	160	45/48	2	±5.5	249	507	4.4	1	—
SC201550VA	100	150	50	1.5	±6	232	543	3.4	1	—
SCP201550VA	100	150	50	1.5	—	232	543	3.4	2	—
SC201752V-1A	100	165	52	2	±5.5	279	600	4.8	1	23120CC
SC211656VA	105	160	56	2	±9	242	594	4.4	1	24021CC
SC221745V-3A	110	170	45	2	±5.5	260	523	4	1	23022CC
SCP221745V-3A	110	170	45	2	—	260	523	4.1	2	23022CC
SC221760V-1A	110	170	60	2	±8	279	722	5.5	1	24022CC
SC221764VA	110	170	64	2	±10	279	722	5.8	1	—
SC221856V-8A	110	180	56	2	±7.5	296	667	6.1	1	23122CC
SC221869V-3A	110	180	69	2	±9	355	842	7.6	1	24122CC
SCP221869V-3A	110	180	69	2		355	842	7.8	2	24122CC
SCP222053VA	110	200	53	2.1	—	333	626	8.2	2	22222CC
SC241846V-2A	120	180	46	2	±6	231	588	4.5	1	23024CC
SCP241846V-2A	120	180	46	2	_	231	588	4.6	2	23024CC
SC241854VA	120	180	54	2	±12	246	516	5	1	_
SC241858V-1A	120	180	58	2	±8	274	726	5.7	1	_
SC241860V-1A	120	180	60	2	±9	274	726	5.8	1	24024CC
SC241856/46VA	120	180	56/46	2	±10	279	626	5.2	1	_
SC242080VA	120	200	80	2	±9.5	521	1120	11.1	1	24124CC
SCP242080V-3A	120	200	80	2	_	431	1040	12	2	24124CC
SCP262052V-1A	130	200	52	2	_	295	701	6.7	2	23026CC
SC262069V-1A	130	200	69	2	±9	381	969	8.7	1	24026CC
SCP262069V-1A	130	200	69	2	_	381	969	8.9	2	24026CC
SC262079/69VA	130	200	79/69	2	±11	443	1090	9.6	1	_
SC262164VA	130	210	64	2	±10	408	882	9.2	1	23126CC
SC262180V-2A	130	210	80	2	±11.5	448	1120	11.9	1	24126CC
SCP262180V-2A	130	210	80	2	_	448	1120	12.2	2	24126CC
SC262364V-2A	130	230	64	3	±9	442	950	12.5	1	22226CC
SC282153V-1A	140	210	53	2	±6	331	834	7.1	1	23028CC
SCP282153V-1A	140	210	53	2	_	331	834	7.2	2	23028CC
SC282169RVA	140	210	69	2	±9.5	431	1010	8.8	1	24028CC
SCP282169RVA	140	210	69	2	_	431	1010	9.3	2	24028CC
SC282368RVA	140	225	68	2.1	±7	512	1150	11.1	1	23128CC
SCP282368V-1A	140	225	68	2.1	_	465	1020	11.6	2	23128CC
SC282385V-1A	140	225	85	2.1	±11.5	521	1300	14.4	1	24128CC
SCP282385V-1A	140	225	85	2.1	_	521	1300	14.8	2	24128CC
SC302375V-6A	150	225	75	2.1	±9	492	1220	11.4	1	24030CC
SCP302375V-6A	150	225	75	2.1	_	492	1220	11.8	2	24030CC
SC3025100V-1A	150	250	100	2.1	±14	666	1650	21.9	1	24130CC
SC302796VA	150	270	96	3	±12	806	1670	26.2	1	23230CC
SC322480-2VA	160	240	80	2.1	±13	542	1280	13.6	1	24032CC
SC3227109VA	160	270	109	2.1	±13.5	867	1980	28	1	24132CC
SC3234114VA	160	340	114	4	±15	1230	2300	55.3	1	22332CC
SC342690V-1A	170	260	90	2.1	±14	622	1560	18.7	1	24034CC
SCP342690V-1A	170	260	90	2.1	—	622	1560	19.1	2	24034CC
SC3431110VA	170	310	110	4	±14	1010	2180	40.1	1	23234CC
SC3628100V-1A	180	280	100	2.1	±14	743	1890	25	1	24036CC
SC3632112V-1A	180	320	112	4	±15	950	2350	43.5	1	23236CC
SCP3632112V-1A	180	320	112	4	—	950	2350	44.1	2	23236CC
SCP382975V-1A	190	290	75	2.1	—	595	1530	20.3	2	23038CC
SC3829100V-1A	190	290	100	2.1	±14	768	2030	26.1	1	24038CC
SCP3829100V-1A	190	290	100	2.1	—	768	2030	26.8	2	24038CC
SC3832104VA	190	320	104	3	±12	1030	2270	37.2	1	23138CC
SC3832128VA	190	320	128	4	±15.5	1120	2790	46.7	1	24138CC
SCP3832128VA	190	320	128	4	—	1120	2790	47.8	2	24138CC
SC3834120V-1A	190	340	120	4	±16	1110	2720	53	1	23238CC
SCP403182VA	200	310	82	2.1	—	692	1810	25.9	2	23040RCC
SC403111RVA	200	310	109	2.1	±11	978	2550	33.5	1	24040CC
SC4034112V-1A	200	340	112	3	±16	1080	2490	46	1	23140CC
SC4034140VA	200	340	140	3	±19	1350	3090	56.1	1	24140CC
SC4437150VA	220	370	150	4	±19	1540	3750	72.3	1	24144CC
