Backing bearings ( Back-up bearings )

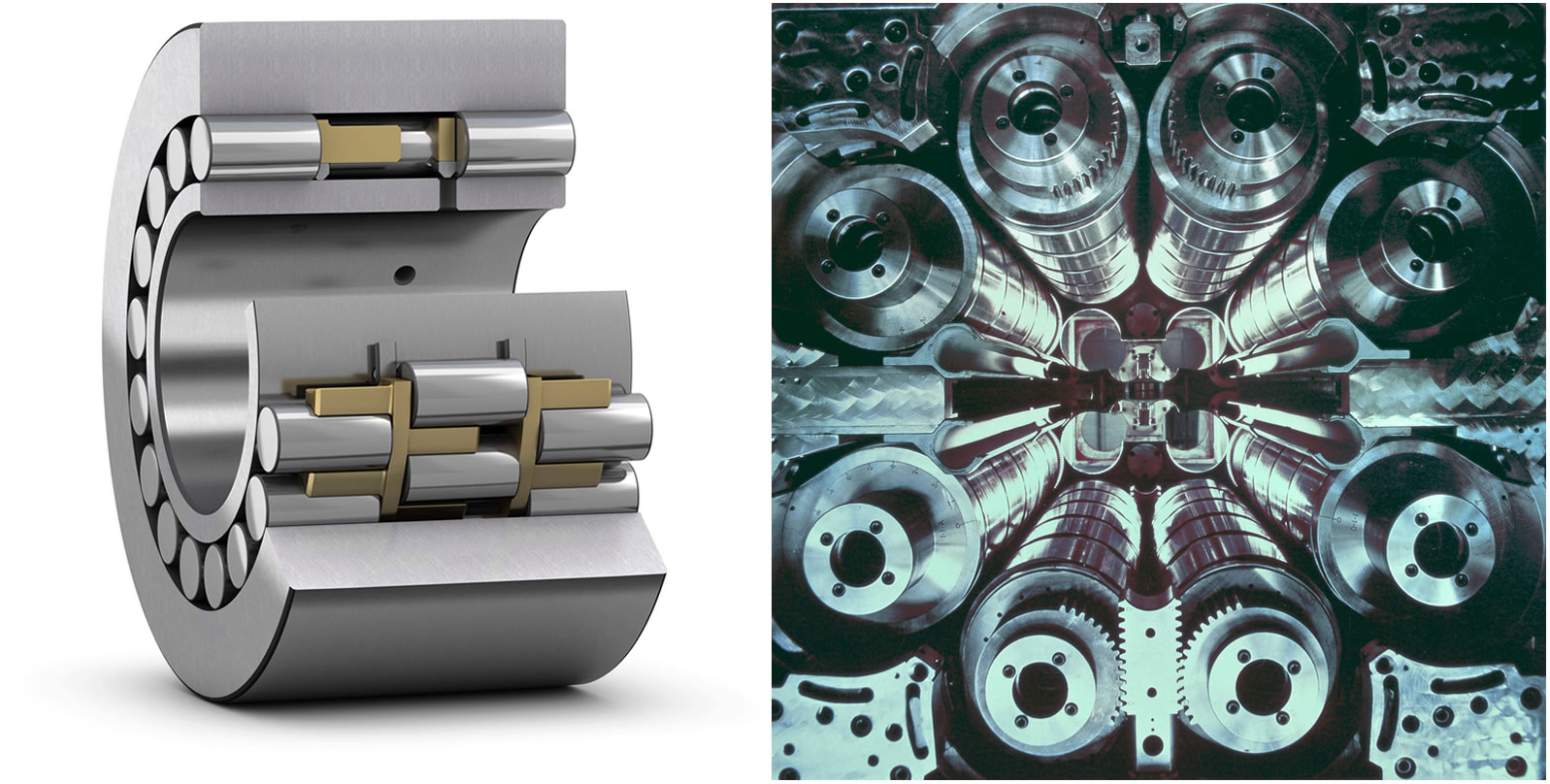

FV backing bearings are available in many designs and variants. The main assortment is based on double or three-row cylindrical roller bearings. Single row needle roller bearing and double row tapered roller bearing designs are also available. Backing bearings have been specially developed for cold rolling mills of the cluster type, but can also be used for other applications, such as straightening or bending machines. These bearings have a particularly thick-walled outer ring and can be mounted on stationary support shafts to form backup or straightening rolls. We shows the arrangement of the backing bearings on the eight support shafts of a 20-roll mill.

  • Size range: I.D. 50mm~210mm
  • Applications: Sendzimir cold strip mill Sendzimir planetary mill

Backing bearings ( Back-up bearings )

FV backing bearings are available in many designs and variants. The main assortment is based on double or three-row cylindrical roller bearings. Single row needle roller bearing and double row tapered roller bearing designs are also available.


Backing bearings have been specially developed for cold rolling mills of the cluster type, but can also be used for other applications, such as straightening or bending machines. These bearings have a particularly thick-walled outer ring and can be mounted on stationary support shafts to form backup or straightening rolls. Pic shows the arrangement of the backing bearings on the eight support shafts of a 20-roll mill.



rolling mill bearings, Roll neck bearings, Tapered roller bearings, Spherical roller bearings

Principal dimensions [mm]Basic load ratings [kN]Fatigue load limit [kN]Maximum radial loads [kN]Designation

dynamicstatic
dynamicstatic
DdH max.BCCCoPuFmax.For max.
1205532.49352.25212327536224315396040
1205532.496262658.39811.6108153610627 B
1607044.982909035858580315455315268 B
1607045908927034545.5250365BCZ-0525 B
1657047.5908829739052285415BCZ-0529
1657047.512011831446561355510BCZ-0503 AA
2209064.97912012050175090415585316737 AC
2209065969445755068335480BCZ-0508
220906512011948464078440630BCZ-0507
220906512211946860072440630BCZ-0512
22510062.479808041862075380550BCZ-0514
22510062.4791201206601120137560800315018 C
22510062.4791201206601120143560800315018 A
22510062.48112011953973588405570BCZ-0075 A
22510062.48112011959481598400570BCZ-0011
22510062.48512011850169585475670BCZ-0509
22510062.5120120660980116450640BCZ-0513
2501306010610352873580390550BCZ-0052
26011074.98989861680091.5335475BC2B 322564
26011074.9811010956169580440630BCZ-0504
2801108513012876510601259001290BCZ-0113
2801108513012876510601259001290BCZ-0113 A
280120801601588091340
8501220BCZ-0034 A
30013084.965160159.5108016301807651100319028 A/HA2
30013084.965172.64172.64117018002008301180314833 B
30013084.965172.64172.64117018002008301180314833 BC
30013084.98172.65172.65114014601637801120BCZ-0532/PEX
30013084.98172.65172.65114014601638151160BCZ-0532 A/PEX
30013084.9851321298801160129500710BCZ-0517 A
300.0213084.988172.65171.6108015001706951500BC2B 320432 AE
406.42180113.155171.04171.041510232024011801660316388 AB
406.42180113.1552242241900310032015302200315515 AB
520205157.4451681682090290027019002650BCZ-8004
